MDC-V Venturi Wet Dust Collector

Product Overview

The MDC-V series represents the standard configuration within the MDC wet dust collector range. Based on an optimized Venturi scrubbing principle, it offers reliable performance for typical industrial processes including metal processing, minerals handling and general dust extraction systems. The design allows flexible customization to match project requirements.

Air Flow
7,000-100,000 m³/h
Pressure Drop
1600 – 2000 Pa
Collection Efficiency
Up to 99%
Installed Power
11 – 185 kW
Request a Proposal Download Inquiry Data Sheet

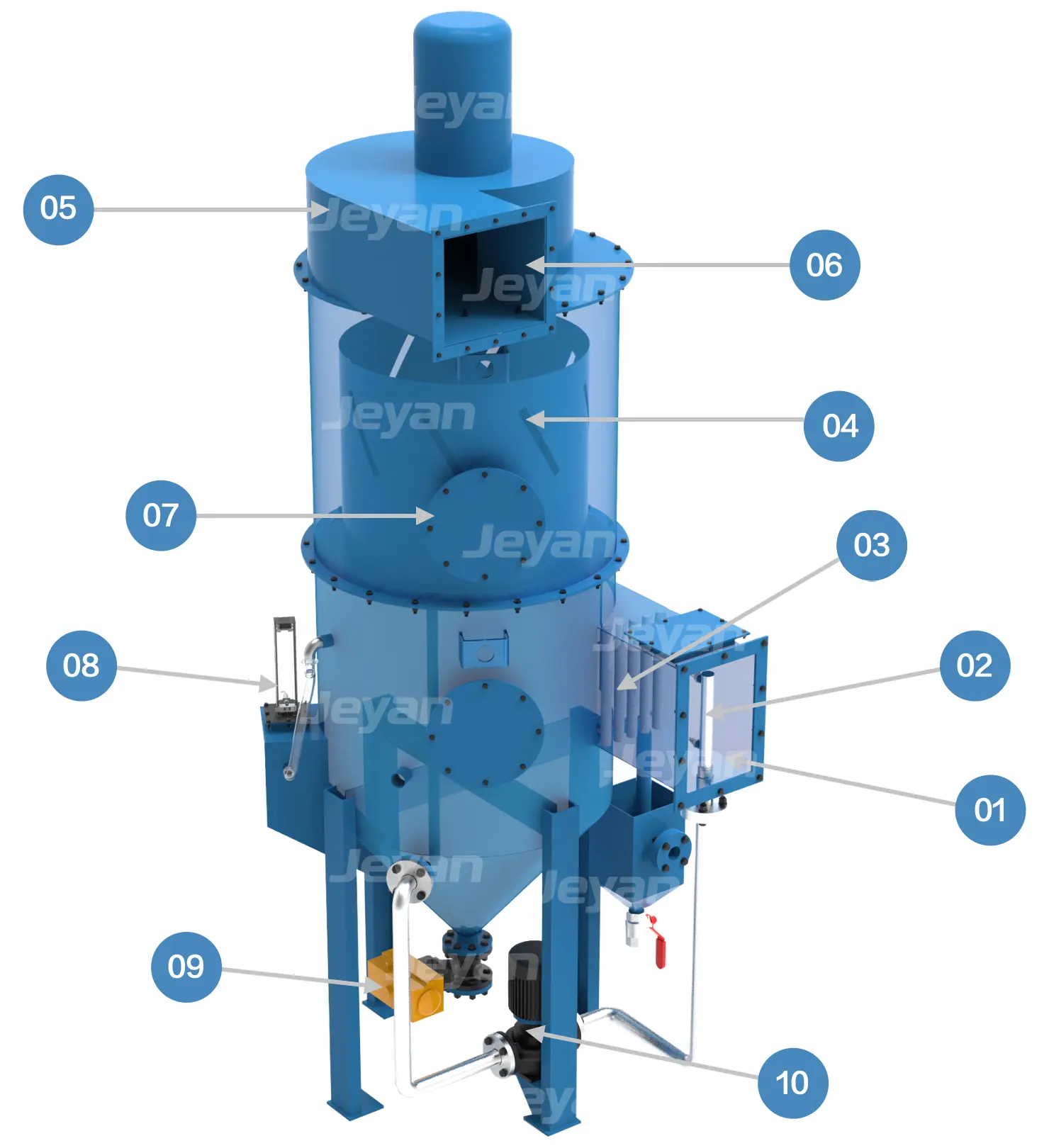

Product Structure

The MDC-V series adopts a practical industrial layout where each functional section is engineered for reliable operation, efficient gas-liquid contact and long service life in continuous duty environments.

Wet dust collector,Wet Collector,wet scrubber
  • ① Inlet
  • ② Spray System
  • ③ Venturi Rod Deck
  • ④ Demister
  • ⑤ Fan
  • ⑥ Outlet
  • ⑦ Access Door
  • ⑧ Level Indicator
  • ⑨ Drain Valve
  • ⑩ Circulation Pump

Sludge Discharge Configurations

To meet different dust loading conditions and plant maintenance strategies, the MDC-V series offers three sludge discharge configurations. Users can select manual removal, automatic scraper discharge or hydraulic flushing discharge depending on operating continuity, sludge volume and automation requirements.

Advantages & Features

Engineered for stable industrial operation, the MDC-V series combines proven wet collection principles with practical design improvements to ensure reliable performance, easy maintenance and consistent dust removal efficiency across various operating conditions.

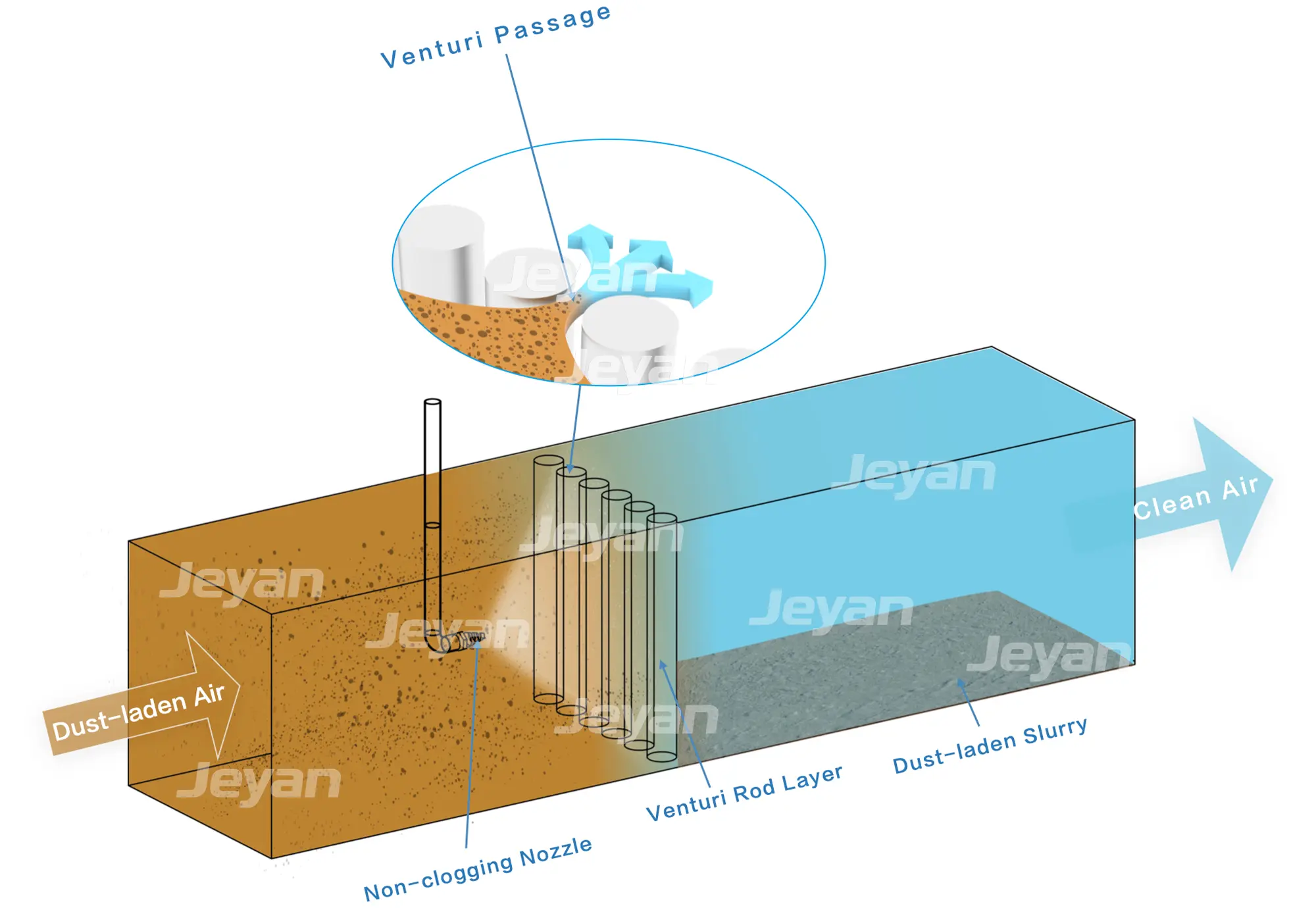

Venturi Separation System

The MDC-V series adopts an engineered Venturi separation system featuring a Venturi rod array that divides the incoming airflow into multiple controlled channels. This structure improves airflow distribution while maintaining low pressure loss.

By creating multiple smaller Venturi zones instead of a single throat, the system increases gas-liquid contact efficiency and enhances dust capture performance. This design provides an effective balance between high separation efficiency and stable operating resistance, making it suitable for continuous industrial duty.

Venturi Separation System

High Efficiency Demisting Module

The MDC-V integrates a high-efficiency two-stage demisting module designed to prevent moisture carryover. The first stage uses tangential inlet airflow to generate centrifugal separation of heavier droplets.

The second stage utilizes a specially designed double swirl demister that effectively isolates separated moisture from the clean air stream. This prevents re-entrainment and ensures stable downstream operation while maintaining consistent exhaust air quality.

High Efficiency Demisting Module

Integrated Fan & Compact Layout

For MDC-V units below 40,000 m³/h, the fan is mounted directly on top of the collector, eliminating the need for external duct connections. This compact arrangement reduces installation time and minimizes required plant space.

The high-pressure industrial fan provides over 3500 Pa static pressure, ensuring sufficient suction capability for most dust extraction systems while improving installation efficiency and reducing structural complexity.

Integrated Fan & Compact Layout

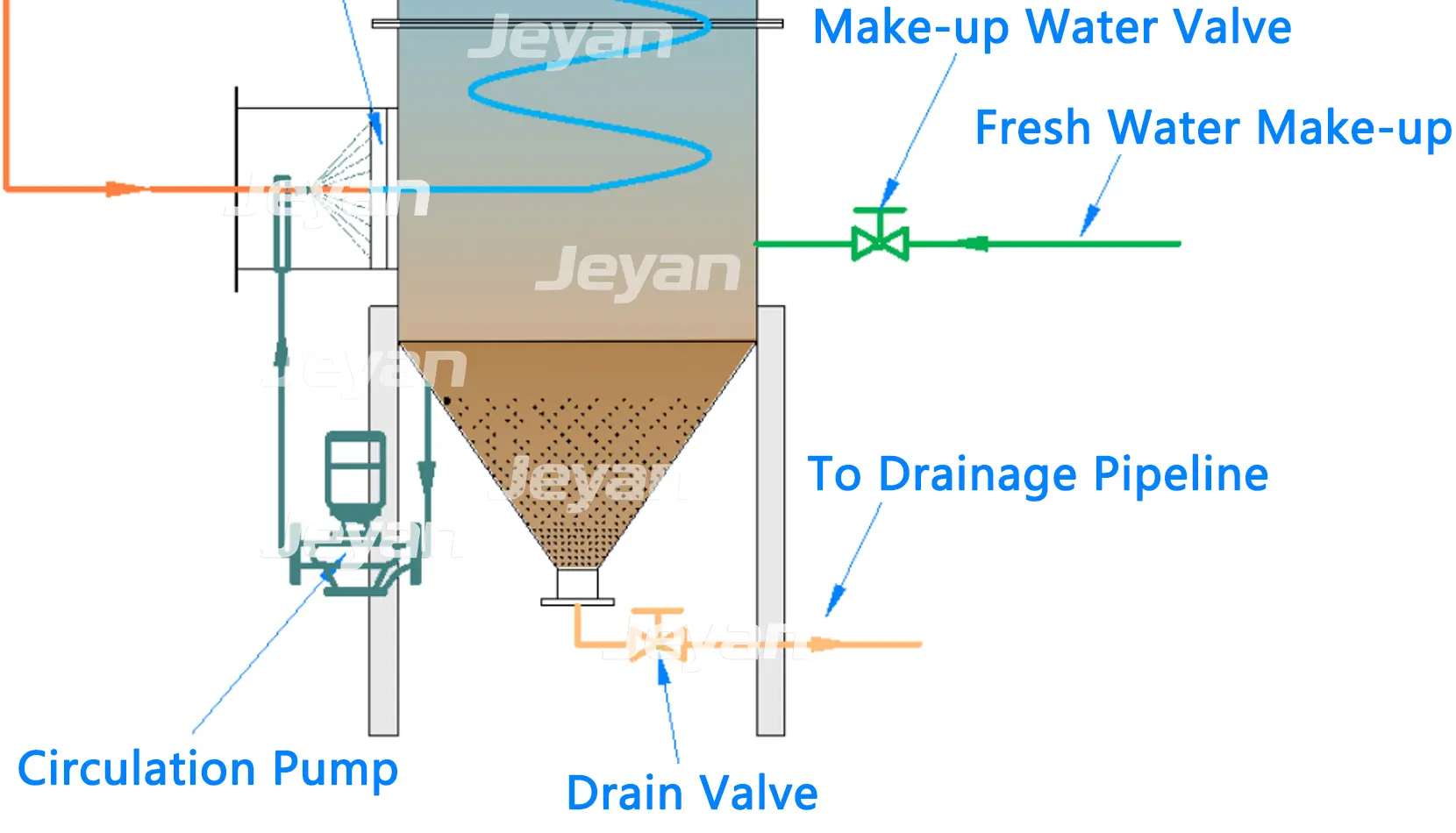

Closed Loop Water Management

The MDC-V is designed with a closed-loop water management system to reduce operating costs and environmental impact. Dust settles in the bottom cone and is discharged, while clarified water is recirculated through stainless steel pumps back to the spray system.

The system integrates filtration, automatic refill, and level monitoring to maintain stable operation and prevent interruptions caused by water shortages.

Closed Loop Water Management

Automatic Sludge Discharge System

The MDC-V features an automatic sludge discharge system designed for reliable long-term operation. A V-port stainless steel valve with chrome plated core provides excellent resistance to wear and clogging.

The pneumatic actuator enables fast opening cycles to create strong flushing action. Adjustable discharge intervals allow operators to optimize maintenance schedules while reducing wastewater treatment load.

Automatic Sludge Discharge System

Smart Control & Industrial Durability

The MDC-V is engineered for industrial reliability with SA2.5 surface preparation and a heavy-duty three-layer coating system to provide long-term corrosion protection.

The integrated PLC control system with touchscreen allows operators to easily manage water supply, drainage, and alarms. Ethernet communication enables integration into plant automation systems for centralized monitoring and operation.

Smart Control & Industrial Durability

Technical Specifications

Typical technical data of standard models are shown below for reference and preliminary selection.

Model Air Flow Power Model Air Flow Power
V85 7000-8000 11 V170 28000-32000 45
V105 9000-12000 15 V190 33000-39000 55
V115 12000-14000 18.5 V210 40000-50000 C/F
V125 14000-17000 22 V230 50000-60000 C/F
V140 18000-22000 30 V250 60000-70000 C/F
V160 22000-28000 37 V265 70000-80000 C/F
V285 80000-90000 C/F

* Capacity based on typical bulk density, data for reference only, final design prevails, dimensions subject to configuration.

Request a Proposal

Submit your project requirements and our engineers will recommend a suitable configuration for your application.

Submit Successfully!

We have received your message and will contact you soon.

Frequently Asked Questions

Common questions about application range, dust control, and selection data.

Q: What kind of dust can the MDC-V wet collector handle?

A: It can handle viscous dust, steam and oil fog, flammable and explosive dust, rubber powder, leather dust, plastic powder, and fiber or fabric dust.

Q: What is the main working principle of the MDC-V wet collector?

A: It is designed based on cyclone wet dust removal and high-efficiency Venturi principles, with two-stage cyclone dehazing for deep gas-liquid separation.

Q: What sludge discharge structures are available?

A: The MDC-V series provides three main configurations: automatic slag-flushing type, manual sludge discharge type, and automatic scraper type.

Q: What optional accessories are available?

A: Optional accessories include a high efficiency air filter and a dust pretreatment device.
