Fog Cannon Dust Suppression System

Product Overview

The Fog Cannon system is an engineered solution for dust suppression in large open or semi-open environments. The system generates a controlled mist cloud using precision spray nozzles and directs it using a powerful fan to maximize coverage and dust capture efficiency. Compared with traditional water spraying methods, the fog cannon significantly reduces water consumption while improving suppression efficiency and minimizing ground wetting.

Droplet size
1-50 microns
Spray Distance
Up to 100 meters
Application
Mining and quarry operations,Ports and bulk terminals,Coal yards and power plants,Cement and aggregate plants,Demolition and construction sites,Stockpile handling
Request a Proposal Download Inquiry Data Sheet

Product Structure

Typical configurations include air compressors, air receivers, water tanks, booster pumps, filtration modules, fog generators, air-water distribution manifolds, fogging nozzles, fog chambers, and electrical control systems. Each system is engineered according to site conditions and process requirements.

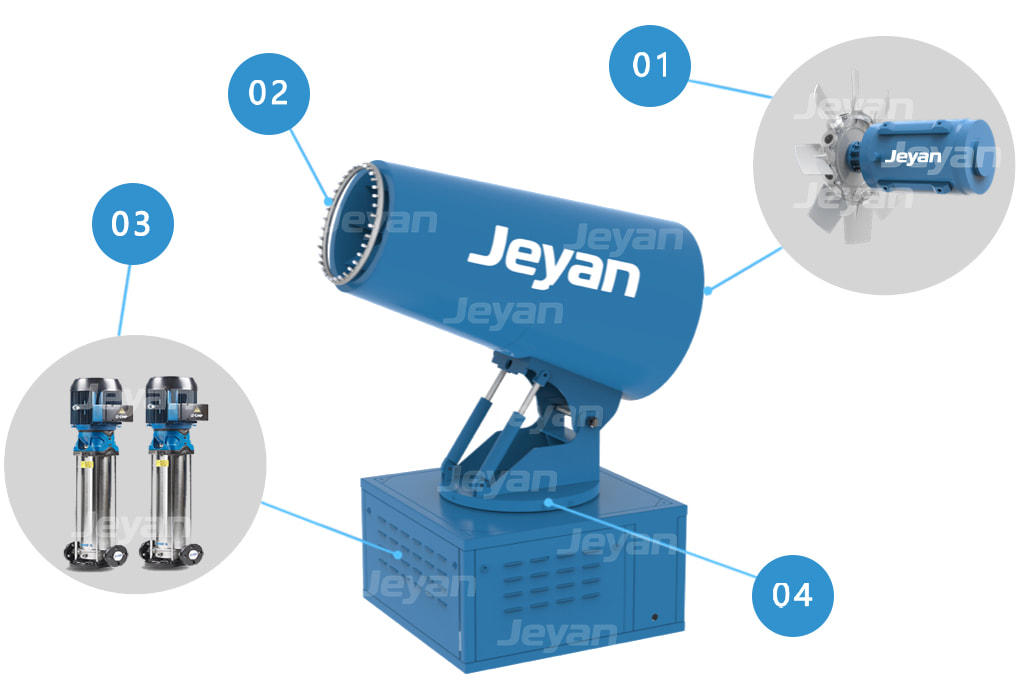

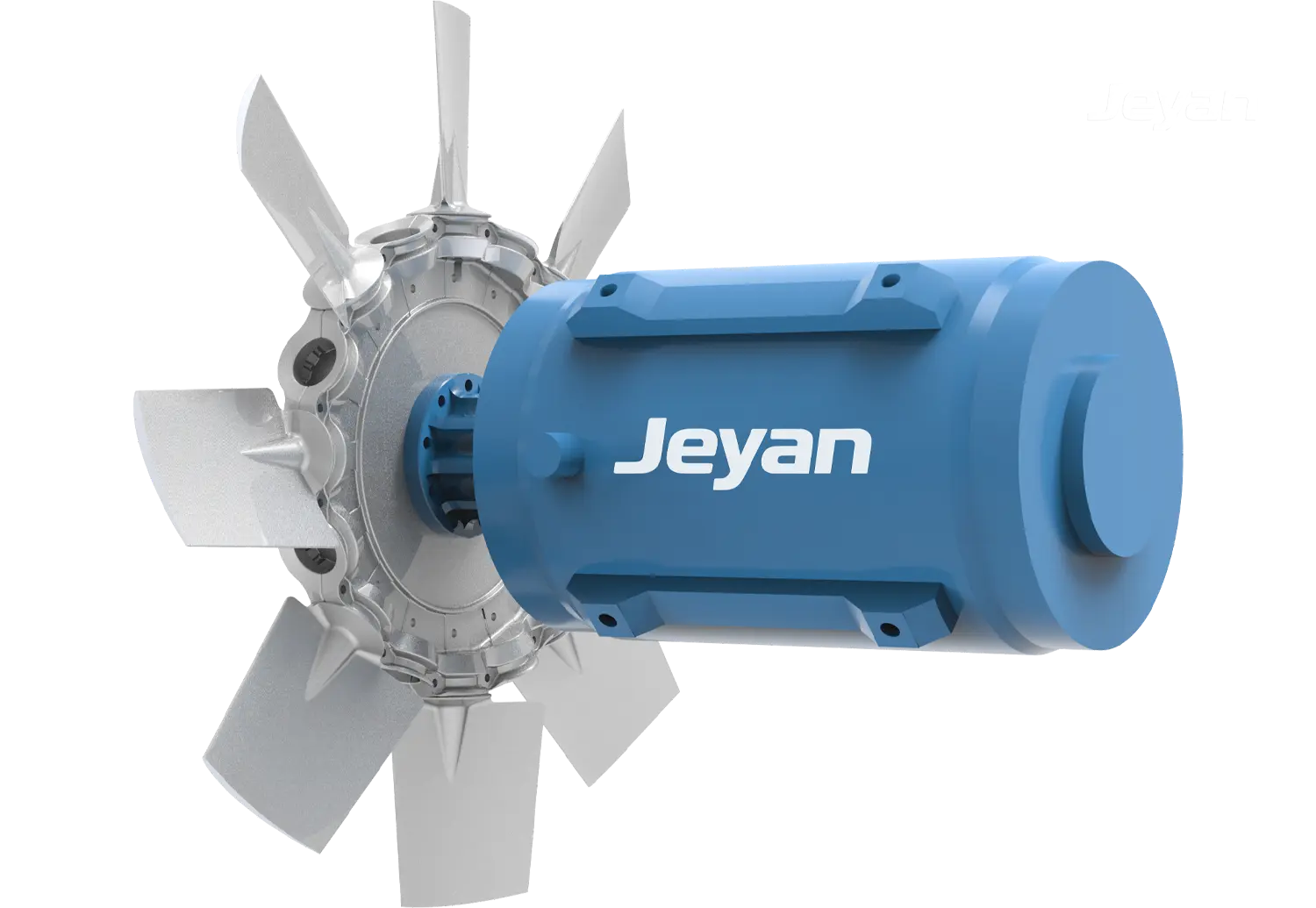

  • ① Fan System

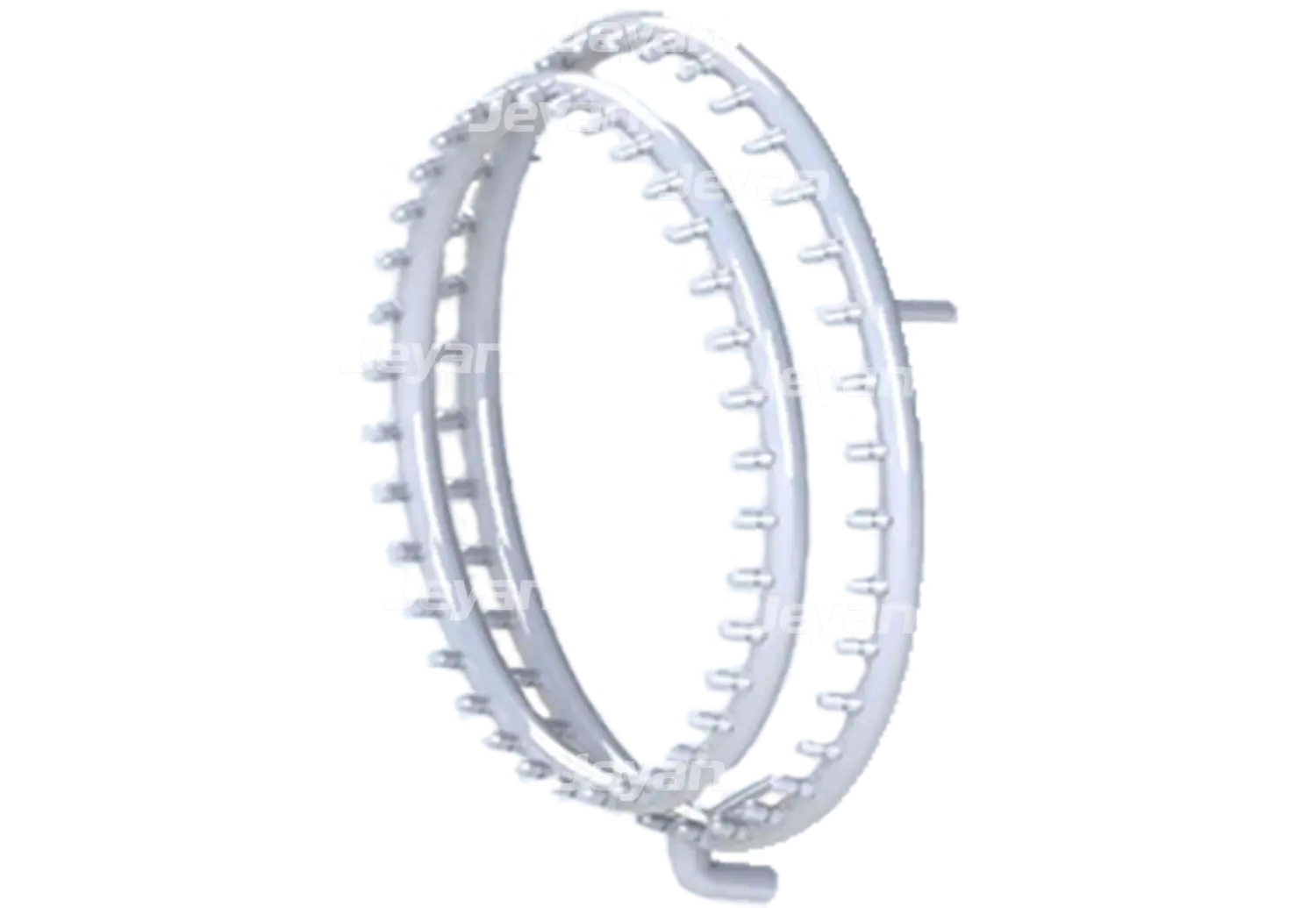

  • ② Spray Atomization System

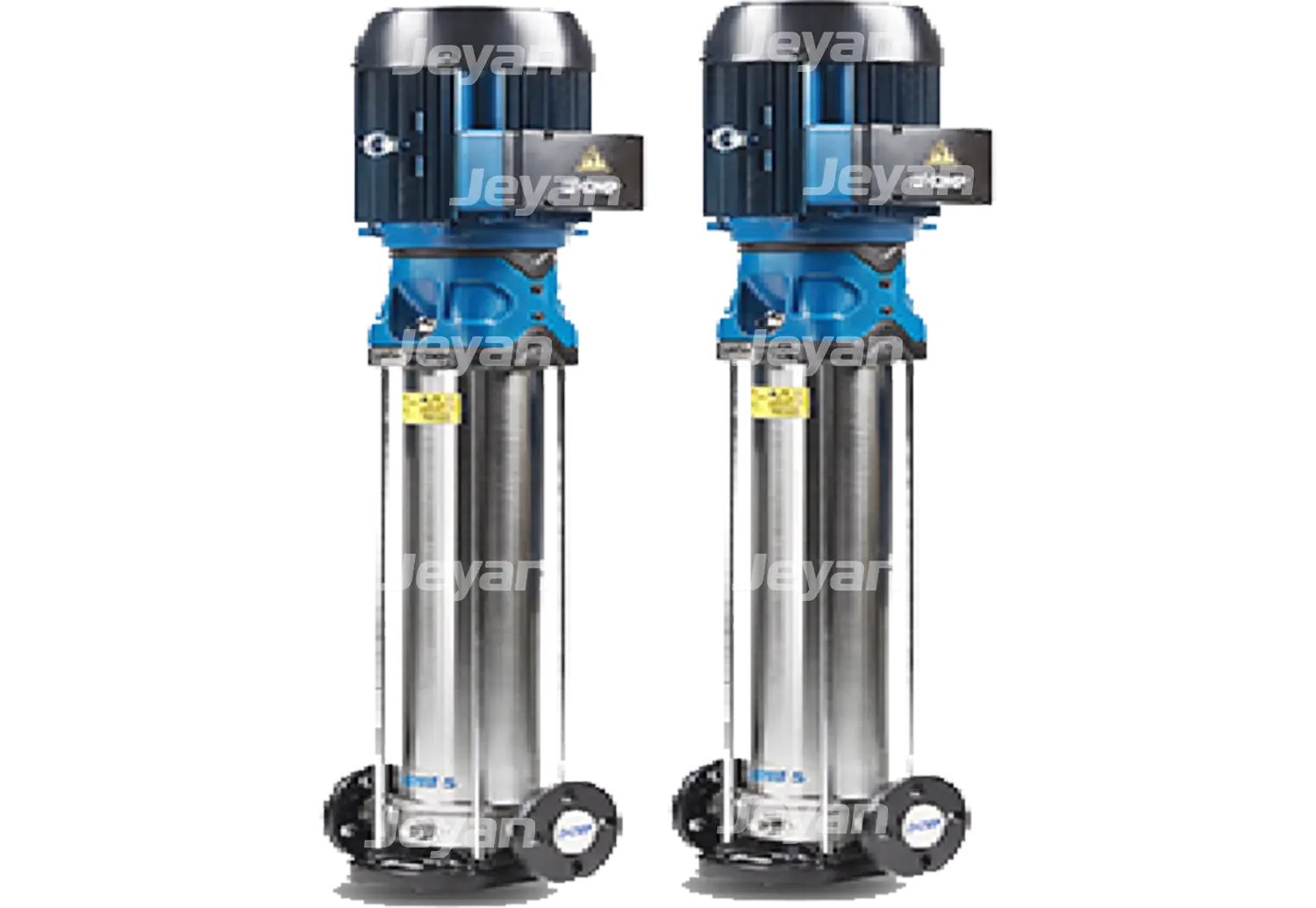

  • ③ Water Supply System
  • ④ Rotation and Positioning System

Advantages & Features

The TC series integrates proven mechanical design with practical engineering features developed from bulk material handling projects. These features focus on operational reliability, adaptability to different materials, and long-term durability in heavy industrial environments.

Technical Specifications

Typical technical data of standard models are shown below for reference and preliminary selection.

Model FC-40i FC-50i FC-60i FC-80i
Spray Range ≤40 m ≤50 m ≤60 m ≤80 m
Total Power ≤14 kW ≤20 kW ≤27 kW ≤42 kW
Water Consumption ≤1 m³/h ≤2 m³/h ≤2 m³/h ≤3 m³/h

* Capacity based on typical bulk density, data for reference only, final design prevails, dimensions subject to configuration.

Frequently Asked Questions

Common questions about application range, dust control, and selection data.

Q: What materials can the TA loading spout handle?

A: It is designed for dry bulk material loading into open trucks and rail cars, and can be configured for different wear and corrosion conditions through material and lining options.

Q: How is dust controlled during loading?

A: The outlet uses a double-layer rubber dust skirt with automatic lifting to stay close to the material pile, and the spout also has a dust collection port for connection to an extraction system.

Q: What data is needed for selection?

A: Please provide material type, capacity, loading point, truck or rail car type, wear/corrosion condition, dust control target, and any control or automation requirements.
